FEATURES
APPLICATIONS
- MO-127 COPPER POWER DIP™ PACKAGE
- HIGH INTERNAL POWER DISSIPATION — 500 watts
- HIGH VOLTAGE OPERATION — ±75V
- VERY HIGH CURRENT — ±30 amps
- INTERNAL SOA PROTECTION
- OUTPUT SWINGS CLOSE TO SUPPLY RAILS
- EXTERNAL SHUTDOWN CONTROL
APPLICATIONS
- LINEAR AND ROTARY MOTOR DRIVES
- YOKE/MAGNETIC FIELD DEFLECTION
- PROGRAMMABLE POWER SUPPLIES to ±68V
- TRANSDUCER/AUDIO TO 1000W
 |
| 1000W equivalent schematic |
 |

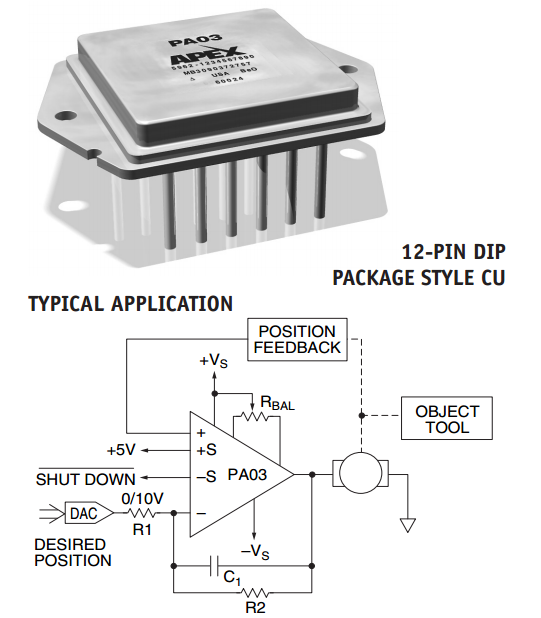

| 1000 w ampliifer tipycal applications |
