TDA7490 general description:
The TDA7490 is a dual audio class D amplifier assembled in Flexiwatt 25 package; it is specially designed for high efficiency application mainly for TV and Home Stereo sets. TDA7490 Audio Amplifier 2 x 25W / 1 x 50W
TDA7490 features:
- 25W + 25W OUTPUT POWER:
- RL = 8Ω/4Ω; THD = 10%
- HIGH EFFICIENCY
- WIDE SUPPLY VOLTAGE RANGE (FROM
- ±10 TO ±25V)
- SPLIT SUPPLY
- TURN OFF/ON POP FREE
- ST-BY AND MUTE FEATURES
- SHORT CIRCUIT PROTECTION ACROSS
- THE LOAD
- THERMAL OVERLOAD PROTECTION
- EXTERNALLY SINCHRONIZABLE
- BRIDGE CONFIGURATION
TDA7490 sterio circuit diagram:
 |
| TDA7490 Audio Amplifier 2 x 25W / 1 x 50W circuit diagram |

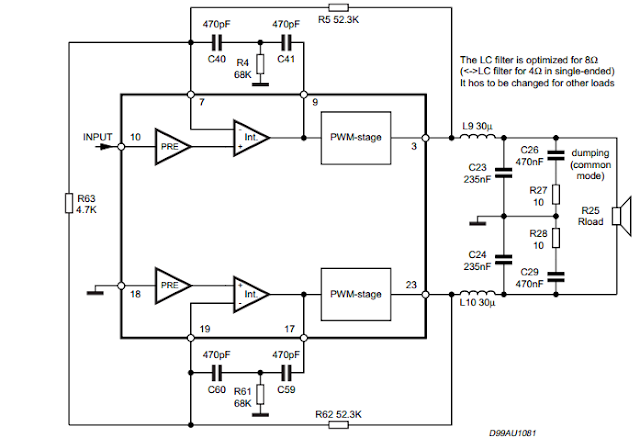

TDA7490 mono circuit diagram:
 |
| TDA7490 Audio Amplifier 2 x 25W / 1 x 50W mono circuit diagram |
TDA7490 sterio circuit pcb:
 |
| TDA 7490 pcb layout |
